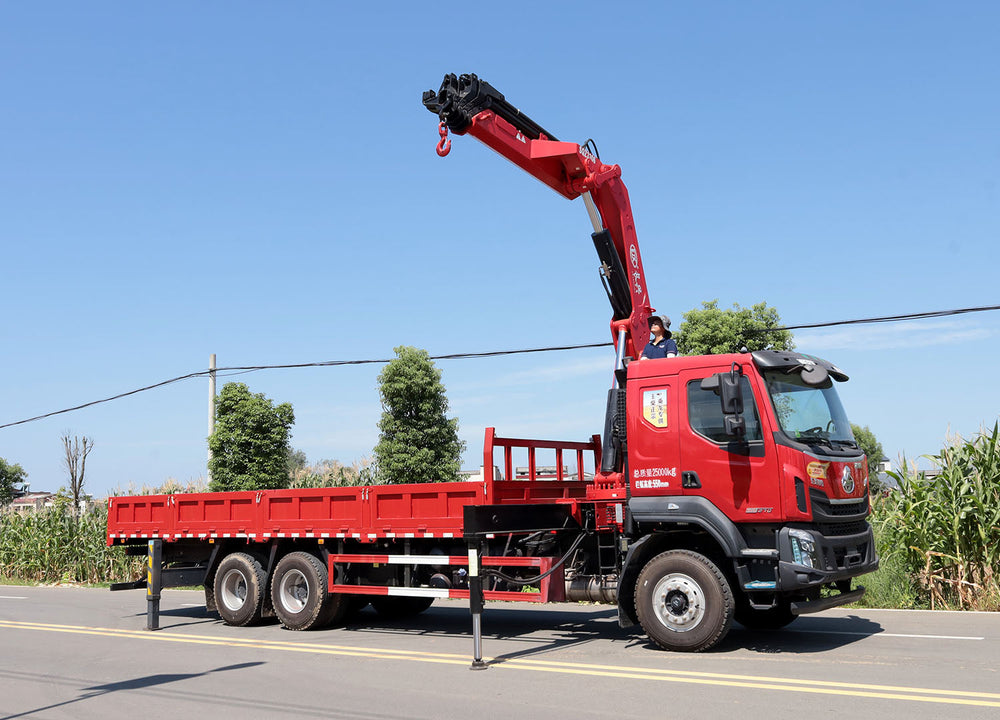

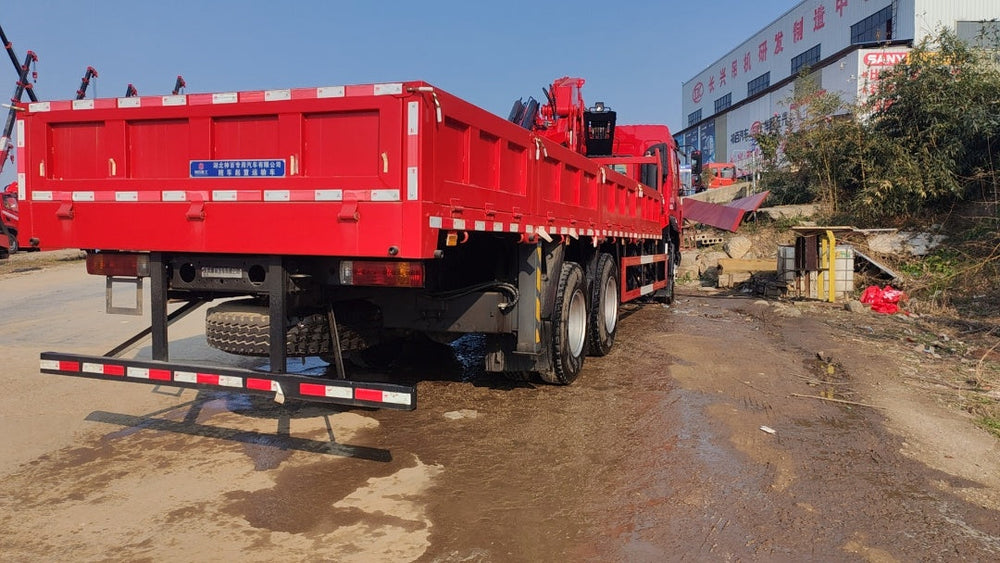

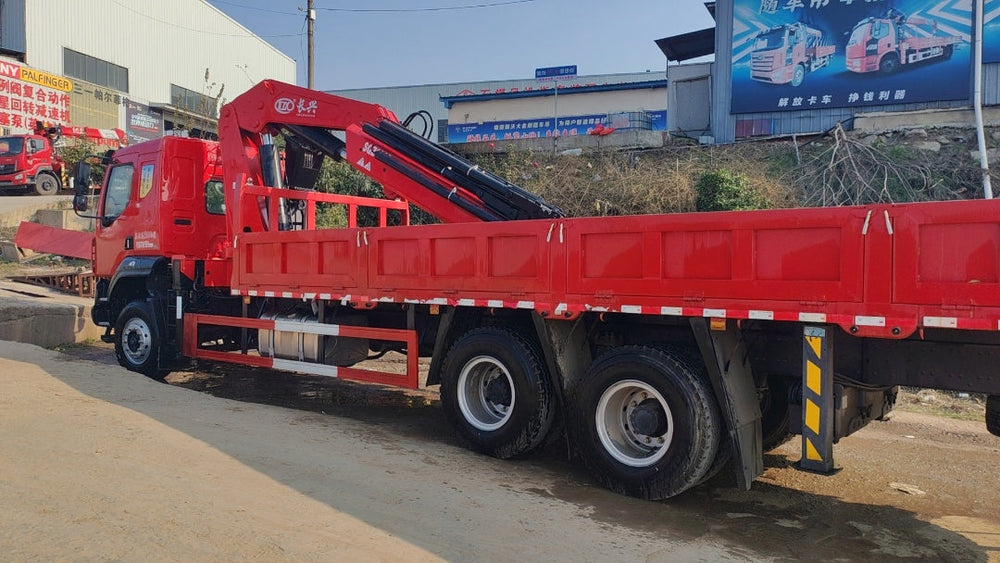

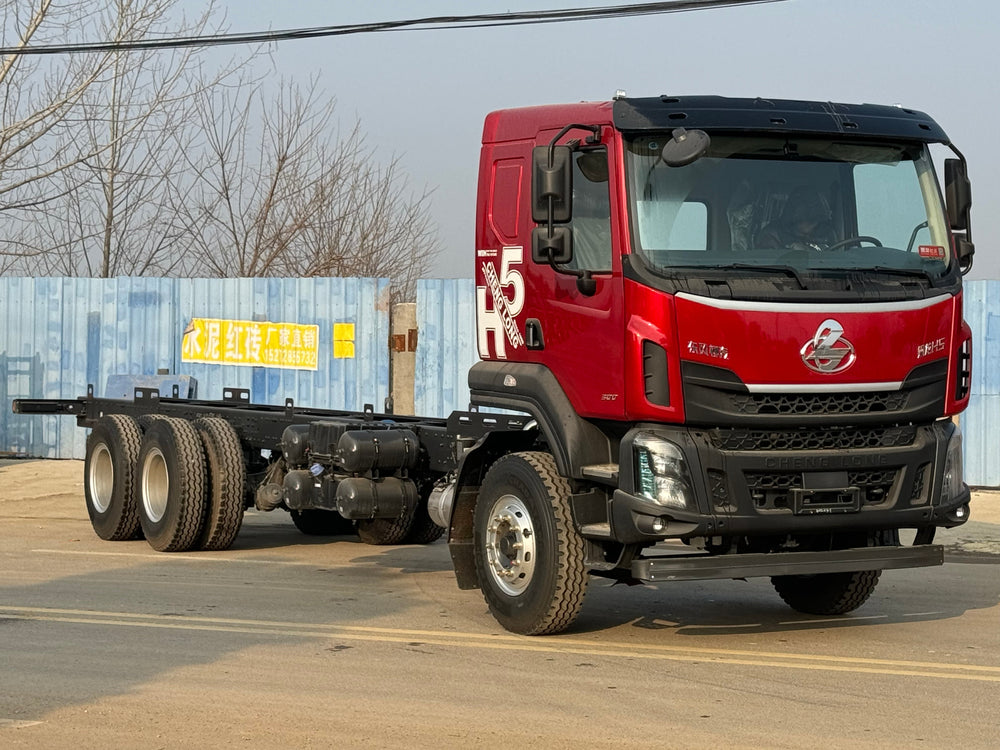

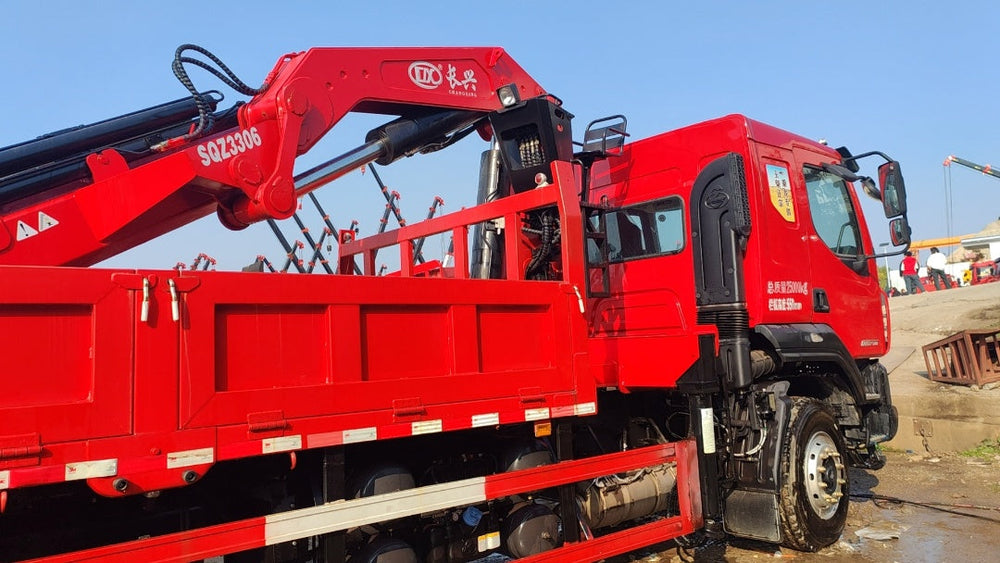

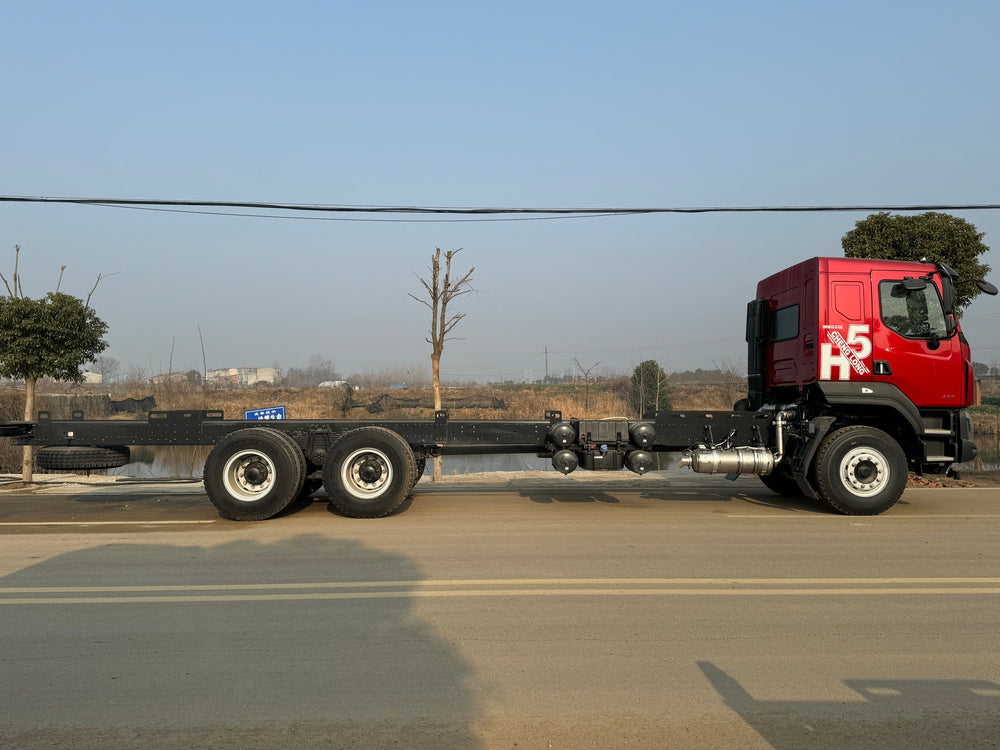

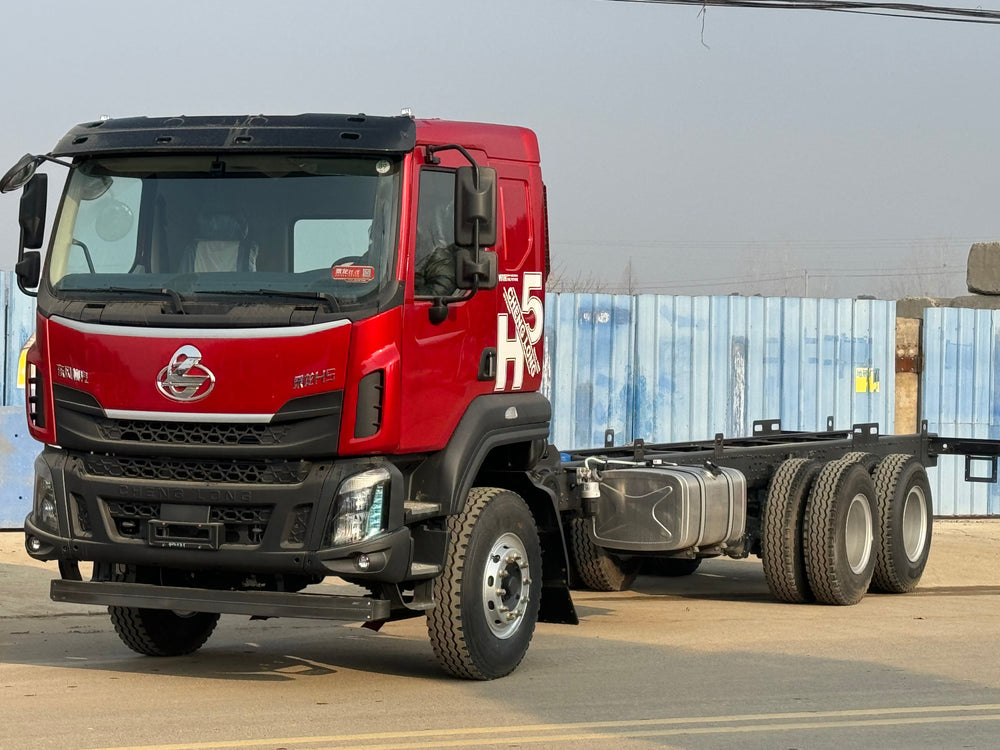

DongFeng 6×4 16T Knuckle Boom Crane
Request a Quote Now
| Item | Specification |
|---|---|
| Basic Vehicle Information | |
| Kerb Weight | 19000KG/18500KG/18000KG/17600KG/16800KG/16100KG; 12-14T announcement covers all domestic crane models for hassle-free registration |
| Wheelbase | Optional long/short wheelbase: 5850+1350/4800+1350/4350+1350/3850+1350mm |
| Overall Length | 12000/10900/10300/9580mm |
| Cargo Box Length | 8400/7200/6600/6000mm |
| Chassis & Powertrain Configuration | |
| Engine | Yuchai YCS07L300-66, 7.0L Displacement |
| Transmission | Fast 9JS119T-B Gearbox, with QHG50 Flange PTO |
| Front & Rear Axle | 6.5T Front Axle / 2×13T Rear Axles; Final Drive Ratio 5.143; Inter-wheel & Inter-axle Differential Locks; Oil-lubricated Wheel Hub |
| Clutch | Φ430 Pull-type Heavy-duty Clutch |
| Leaf Spring | 11/10 Leaf Springs with Double U-bolts; Reinforced Front Springs |
| Chassis Frame | 300(8+8+4) Baosteel 750 3-layer Laminated Through Frame; with Reinforced Subframe & Rear Outrigger Connecting Plates; 14-step Plastic Spraying & Alkali Washing Coating Process |
| Fuel Tank | 350L Aluminum Fuel Tank |
| Tyre Spec | 11.00R20 Steel Wire Heavy-duty Tyre |
| Electrical System | 150AH Battery, 80A Alternator, Maintenance-free Battery |
| Control Features | Rocker-type Self-return Remote Throttle; Under-vehicle Start/Stop Function |
| Exterior Fittings | Color-matched Bumper + Fender; High-position Reinforced Bumper |
| Cab & On-board Configuration | |
| Cab Body | H51S Height-lowered Cab with H5 Decal; 4-point Fine-adjusted Full-floating Cab Suspension (Domestic Exclusive Technology); Manual Hydraulic Tilt |
| Seats | Knitted Air Suspension Driver Seat; Knitted Fixed Passenger Seat |
| Steering & Control | Leather Steering Wheel; Electric Window Lifter; Remote Central Lock; Multi-mode Switch |
| Climate Control | Manual Air Conditioner |
| On-board Terminal | Driving Recorder with Beidou/GPS Compatibility; Chenglong V+ Telematics System |
| Safety & Auxiliary | Right Turn Reminder; Overspeed Alarm; Anti-lock Braking System (ABS); External Sun Visor |
| Entertainment & Instrument | MP3 + Radio; 5-inch Black & White Combination Instrument |
| Lighting | Halogen Main Headlights |
| Exterior Marking | Standard Vehicle Trademark |
