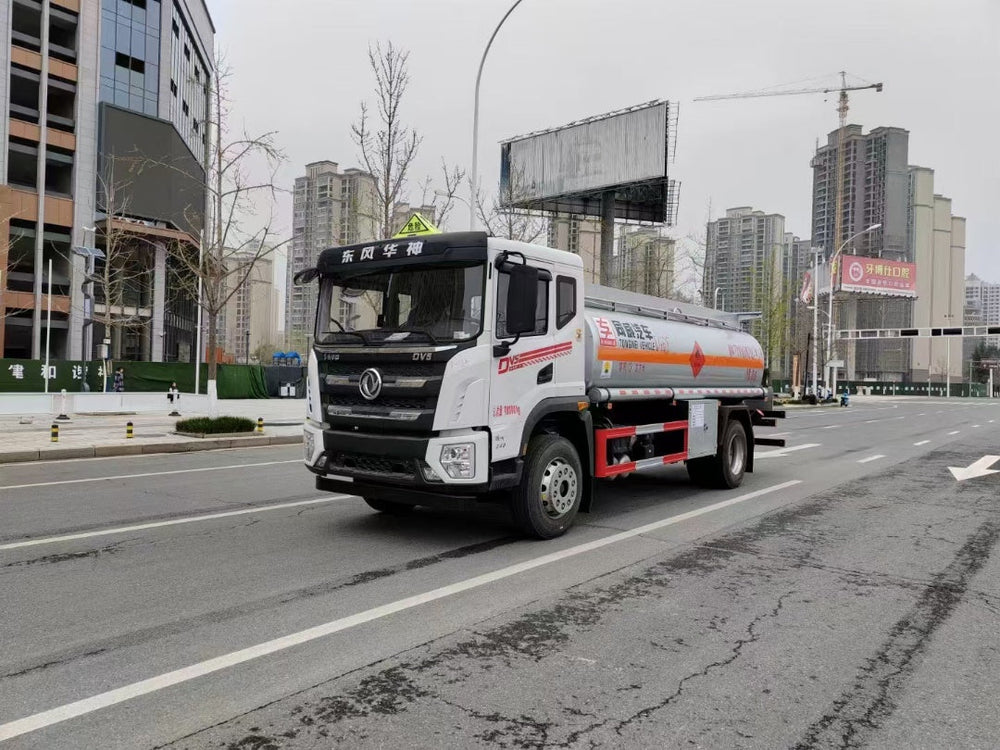

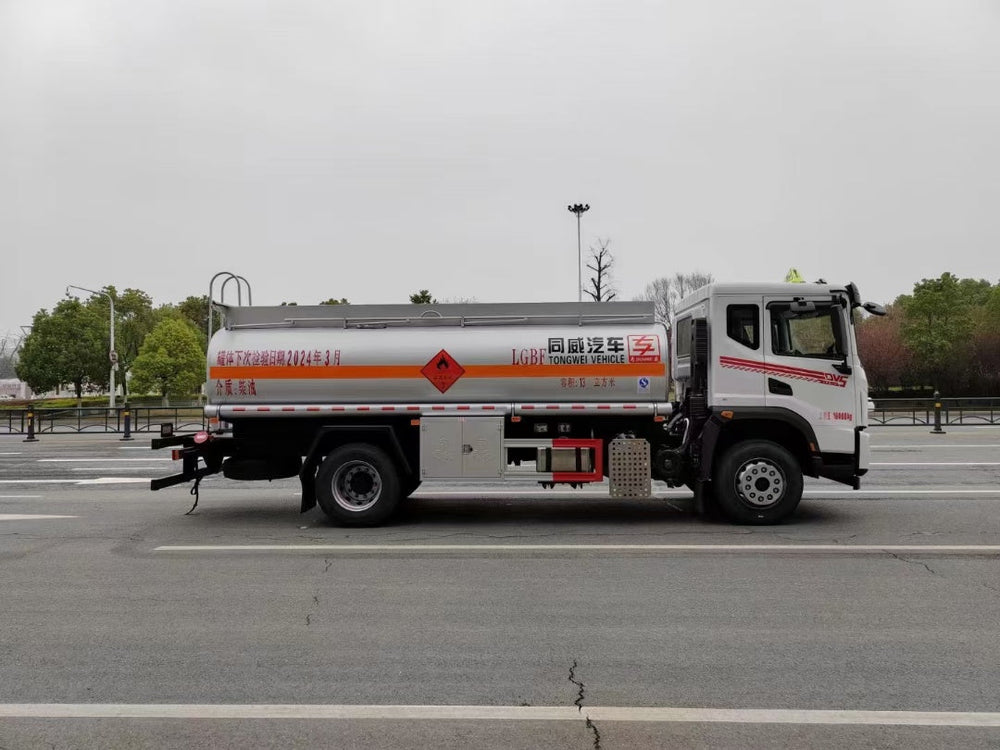

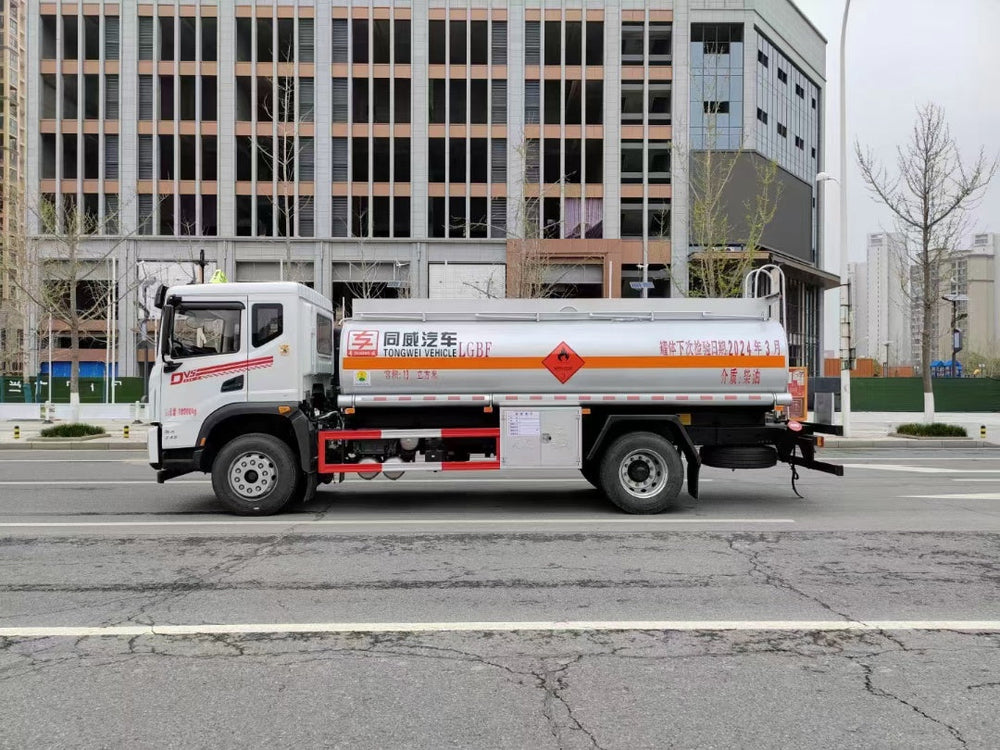

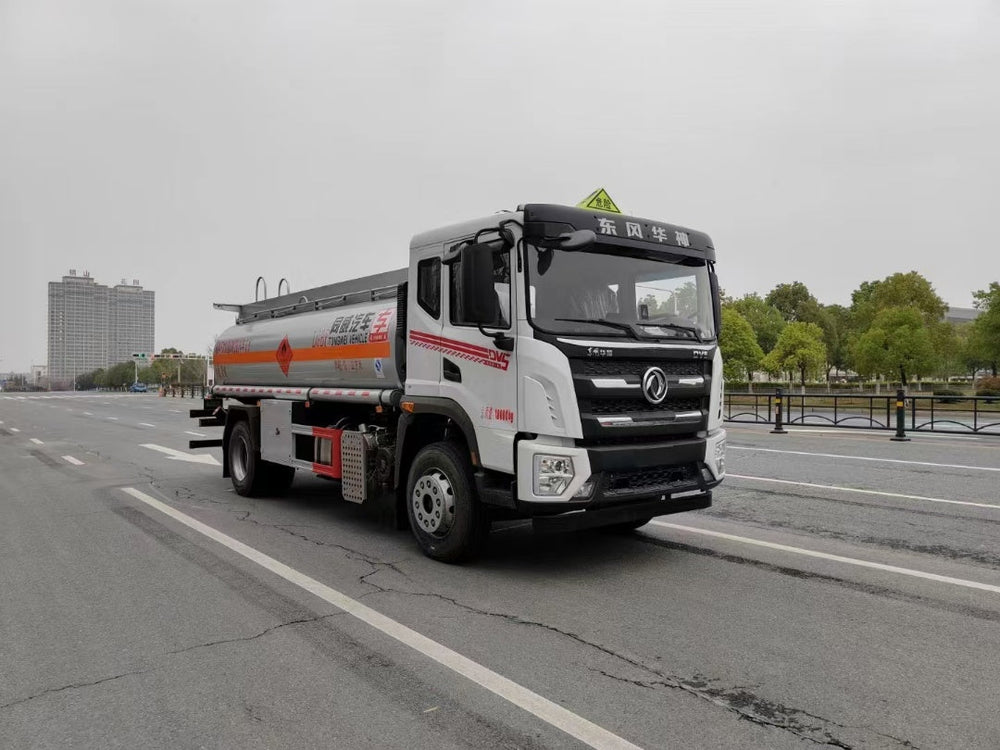

DongFeng 15m³ 245HP Oil Tank Truck
Request a Quote Now
1. Chassis Configuration
| Parameter | Value |
|---|---|
| Chassis Model | EQ1186GL6DJ7 |
| Cab Type | DV5 Half-Row Cab |
| Engine | Yuchai 6-Cylinder 245 HP |
| Transmission | Fast 8-Speed Gearbox |
| Wheelbase | 4700 mm |
| Front Axle | Dongfeng Dana 4.5-Ton Disc Brake Front Axle |
| Rear Axle | 9-Ton Rear Axle |
| Suspension System | Hendrickson (USA) 13-Ton Air Suspension |
| Tire Specification | 275 Vacuum Tires |
| Fuel Tank | Aluminum Alloy Fuel Tank |
| Driver Seat | Airbag Suspension Seat |
| Remote Key | Equipped |

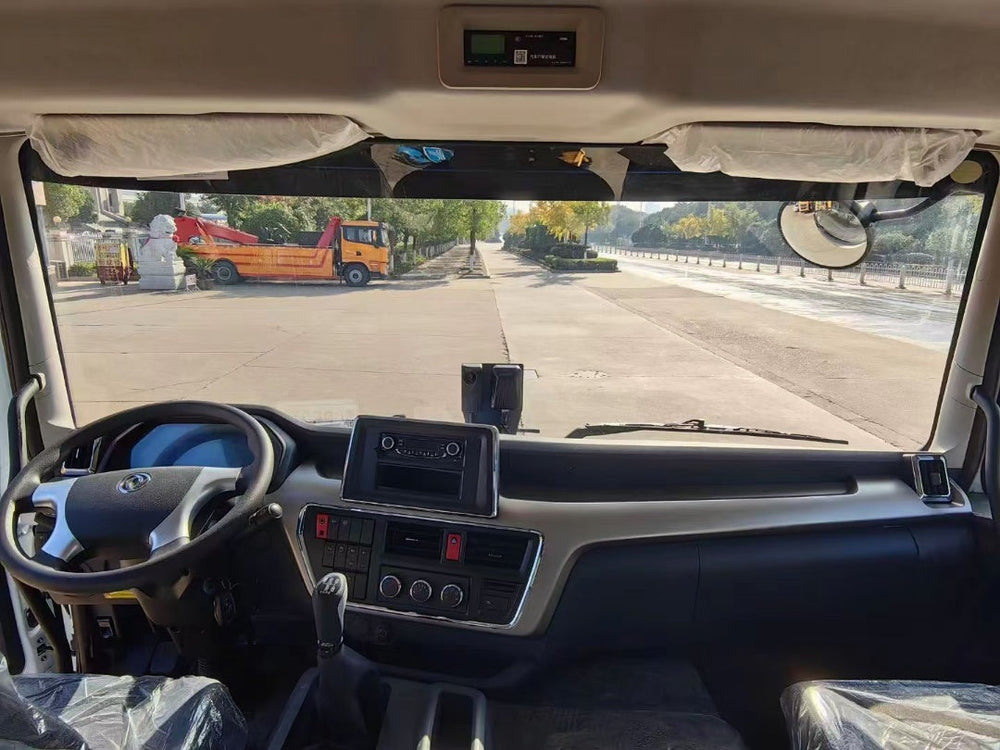

| Cab Interior | Air Conditioner, Electric Windows |
| Power Take-Off | Original Factory PTO |
| Speed Limiter | ECU Electronic Speed Limiter |
| Engine Brake | Engine Cylinder Brake |
| Safety Warnings | Lane Departure Warning, Forward Collision Warning |
2. Tank Body (Upper Structure) Configuration
| Parameter | Value |
|---|---|
| Tank Volume Options | 13 m³ / 15.5 m³ |
| Tank Shape | Square-Round Tank with Bulging (Dished) Heads |
| Tank Wall Thickness | Per design specification |
| Compartment Layout | Single Compartment |
| Pump System | 80-60 Pump with Overflow Valve |
| Pump Inlet/Outlet | Installed on passenger side |
| European Standard Manholes | 2 units |
| Bottom Valve | 1 unit with alarm system |
| Anti-Overflow System | Anti-overflow probe and socket |
| Vapor Recovery System | 1 unit |
| Bottom Loading System | 1 unit (passenger side) |
| Fuel Dispenser | Reserved position for large-flow dispenser (driver side, under main beam) |
| Fuel Hose Reel | Reserved position for 15m large-flow reel (driver side, under main beam) |
| Drip Valve | Oil drip valve at front end of barrel pipe |
| Lifting Guardrail | Equipped |
| Fire Cap | 1 unit |
| Static Grounding | Static belt |
| Oil Delivery Pipes | 2 equal-length pipes with male & female couplings |
| Toolbox | 1 unit |
| Fire Extinguishers | 2 units |
| Pipe Plugs | 2 units |
| Safety Sign | Safety notice board |

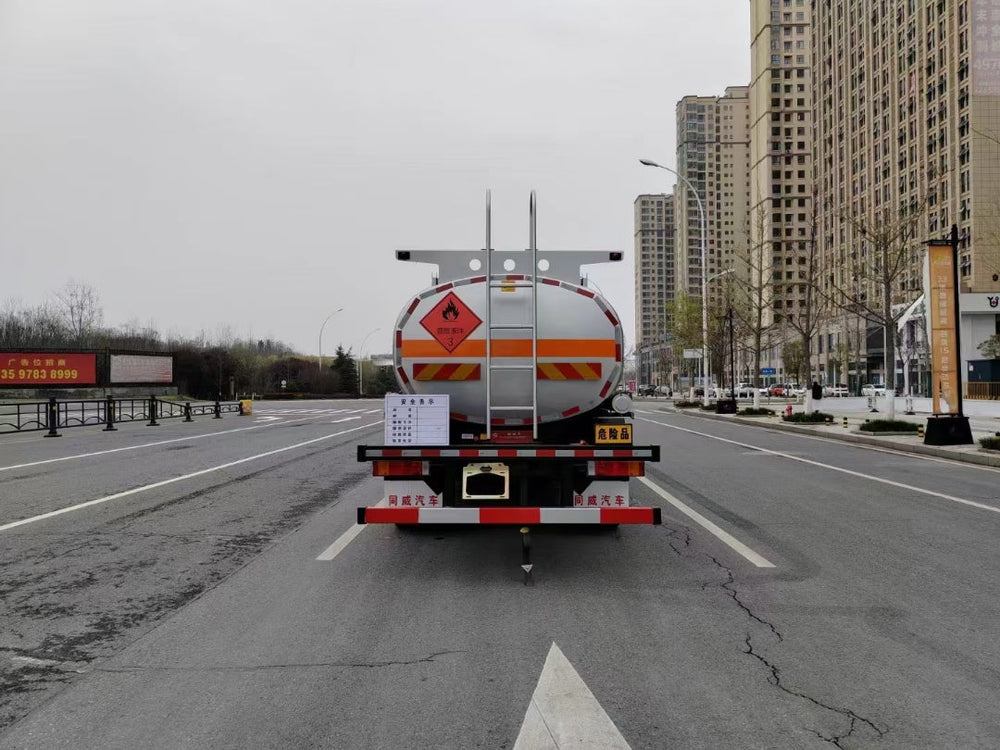

| Climbing Ladder | Rear climbing ladder |
| Tank Top Safety | Anti-slip net on tank top |
| Other Accessories | Remaining standard configuration |
| Compliance Guarantee | Vehicle exterior dimensions, tank dimensions and shape consistent with official announcement |
| Manufacturing | New technology production process |
